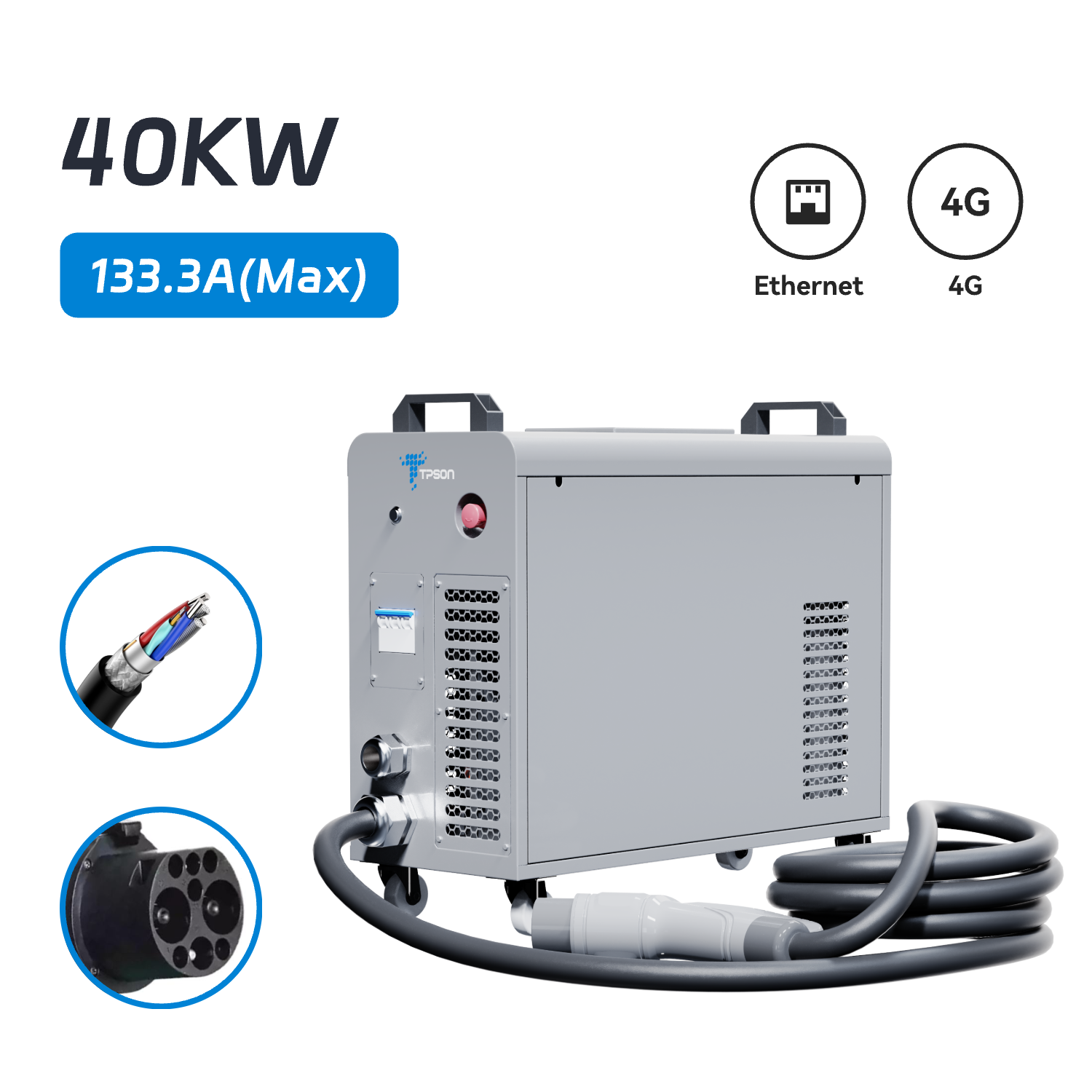

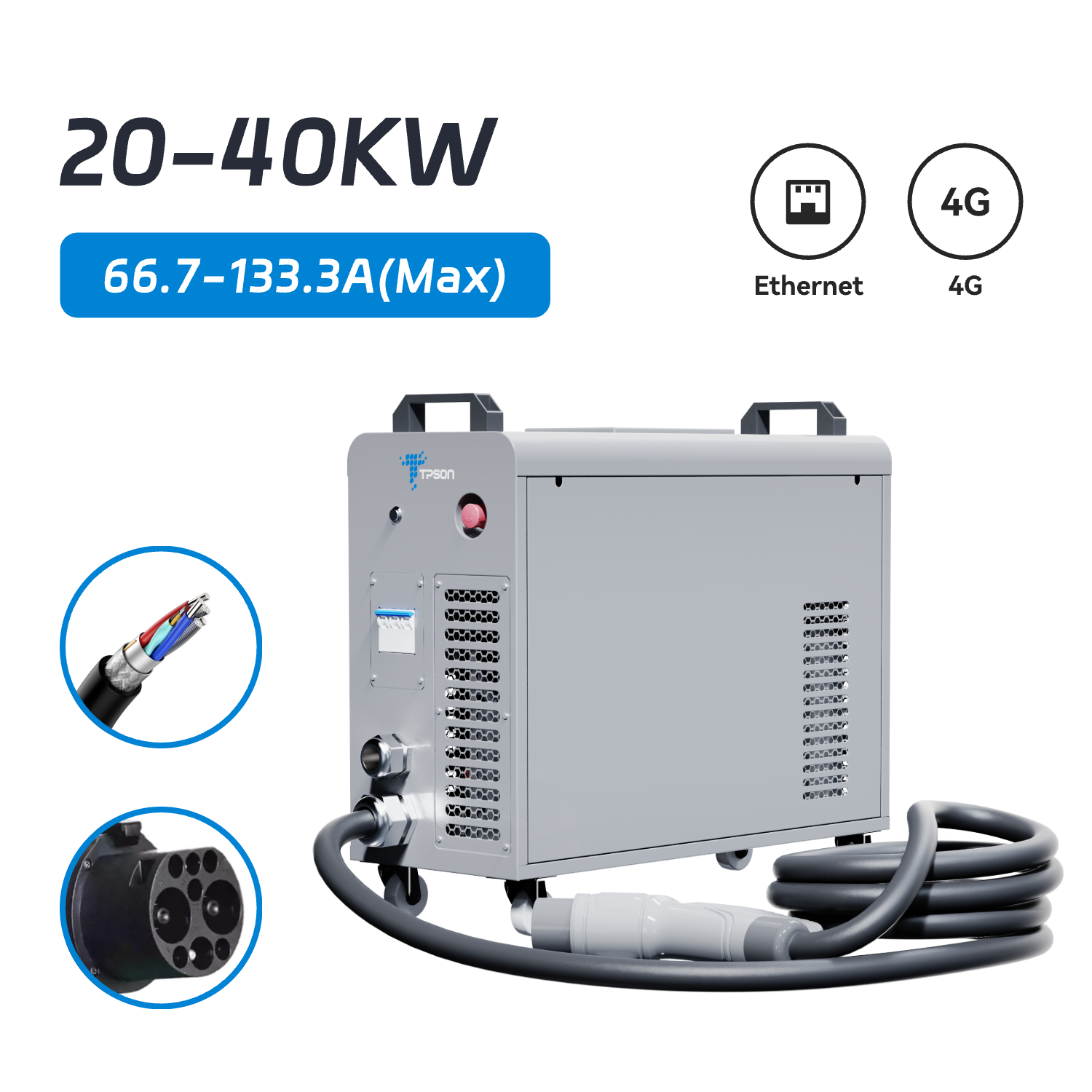

The TP-DC Compact Series integrates next-generation 20kW, 30kW, and 40kW intelligent charging modules, offering flexible power configurations to match specific customer requirements. Designed to meet the needs of small-to-medium passenger and commercial logistics vehicles, it delivers an efficient and adaptable charging solution ideal for both residential and enterprise applications.
The TP-DC compact charger series DC integrated charger adopts next-generation 20/30/40kW intelligent charging modules, allowing
flexible power selection according to customer requirements. Designed to meet the charging needs of small and medium-sized
passenger vehicles and logistics vehicles, it provides charging solutions suitable for both household and enterprise scenarios.
Flexible Power Configuration
Choose from 20kW, 30kW, or 40kW power modules to create a charging solution that perfectly matches your specific requirements and budget.
High-Efficiency Performance
Experience faster charging times with an extended voltage range and superior charging capacity that maximizes performance for a wide variety of vehicles.
Reduced Operating Costs
Engineered for ultra-low energy consumption during both active charging and standby modes, significantly lowering long-term operating expenses.
Compact & Mobile Design
The lightweight, movable unit provides versatile deployment for emergency charging or flexible use across multiple locations.
Product Model | TP-DC 20kW | TP-DC 30kW | TP-DC 40kW |
Rated Power | 20kW | 30kW | 40kW |
Mounting Options | All-in-One Design with Wheel Mobility | All-in-One Design with Wheel Mobility | All-in-One Design with Wheel Mobility |
Dimensions | 690×553×250mm | 690×553×250mm | 690×553×250mm |
Charging Cable Length | Default Cable Length: 5 Meters | Default Cable Length: 5 Meters | Default Cable Length: 5 Meters |
Input Voltage | AC380V±10%, 50±1Hz | AC380V±10%, 50±1Hz | AC380V±10%, 50±1Hz |
Output Voltage Range | DC50-1000V | DC50-1000V | DC50-1000V |
Output Current | 0-66.7A | 0-100A | 0-133.3A |
User Interface | 7-inch high-brightness color touch screen | 7-inch high-brightness color touch screen | 7-inch high-brightness color touch screen |
Charging Methods | Plug & Charge / Screen-Controlled Charging | Plug & Charge / Screen-Controlled Charging | Plug & Charge / Screen-Controlled Charging |
Connection Methods | Ethernet, 4G full network (optional) | Ethernet, 4G full network (optional) | Ethernet, 4G full network (optional) |
Compliance Standards | GB/T 18487-2023; GB/T 27930-2023; NB/T 33001-2018; NB/T 33008-2018; GB/T 34657-2017; IEC 61851-2017; IEC 62196 | GB/T 18487-2023; GB/T 27930-2023; NB/T 33001-2018; NB/T 33008-2018; GB/T 34657-2017; IEC 61851-2017; IEC 62196 | GB/T 18487-2023; GB/T 27930-2023; NB/T 33001-2018; NB/T 33008-2018; GB/T 34657-2017; IEC 61851-2017; IEC 62196 |
Operating Environment | Temperature: -20℃~+50℃, Humidity: 5%~95% non-condensing, Altitude: <2000m | Temperature: -20℃~+50℃, Humidity: 5%~95% non-condensing, Altitude: <2000m | Temperature: -20℃~+50℃, Humidity: 5%~95% non-condensing, Altitude: <2000m |
Electric Protection | Charging gun temperature detection, over-voltage/under-voltage protection, overload protection, short circuit protection, ground fault protection, over-temperature protection, over-current protection, under-voltage lockout, lightning protection, etc. | Charging gun temperature detection, over-voltage/under-voltage protection, overload protection, short circuit protection, ground fault protection, over-temperature protection, over-current protection, under-voltage lockout, lightning protection, etc. | Charging gun temperature detection, over-voltage/under-voltage protection, overload protection, short circuit protection, ground fault protection, over-temperature protection, over-current protection, under-voltage lockout, lightning protection, etc. |
IP Rating | IP20 | IP20 | IP20 |
MTBF | 100,000 hours | 100,000 hours | 100,000 hours |
Emergency Roadside Assistance
Provide a rapid jump-start to stranded EVs, enabling a fast charge to get drivers back on the road without the need for a tow truck.
Dynamic Fleet & Logistics Management
Move the charger to vehicles anywhere in a depot or parking area, offering flexible charging without the cost of installing multiple fixed stations.
Event & Temporary Location Support
Deploy instant charging infrastructure at outdoor events, film sets, construction sites, or pop-up locations to support electric vehicles and equipment.
Automotive Dealerships & Service Centers
Quickly top up EVs anywhere on the lot or in the service bay, improving workflow efficiency and preparing vehicles for test drives or delivery.
With a 20-40kW charging power, our fast charging station allows for quick and efficient charging of electric vehicles.
Our charging station is built with high-quality components and meets strict safety standards. ensuring a safe and reliable charging experience for drivers.
Designed for on-the-go charging. our station is compact and lightweight, making it easy to transport.
Our station supports multiple charging interfaces, including Ccs2 、Ccs1.CHAdeMo、GBT, ensuring compatibility with a wide range of electric vehicle models.
