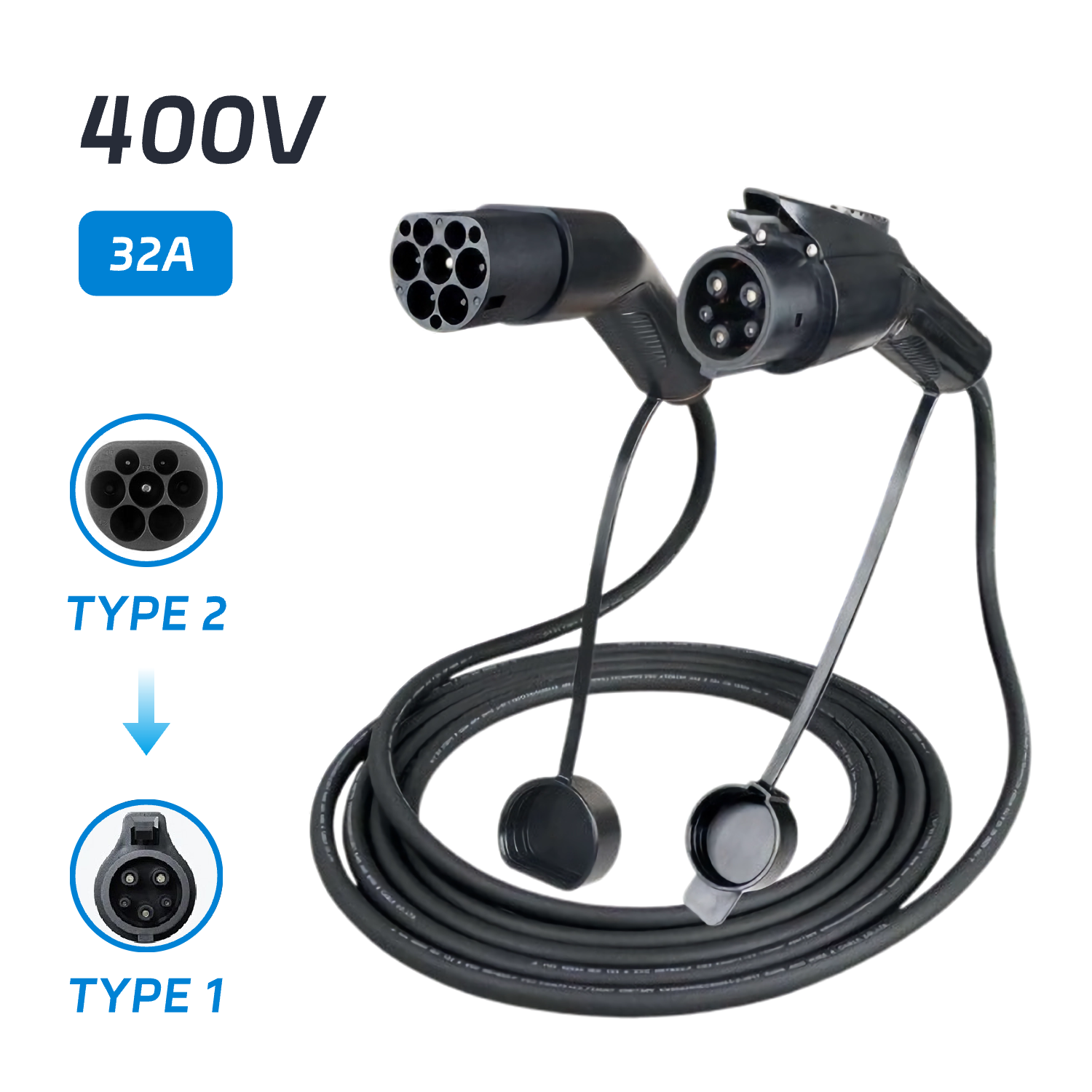

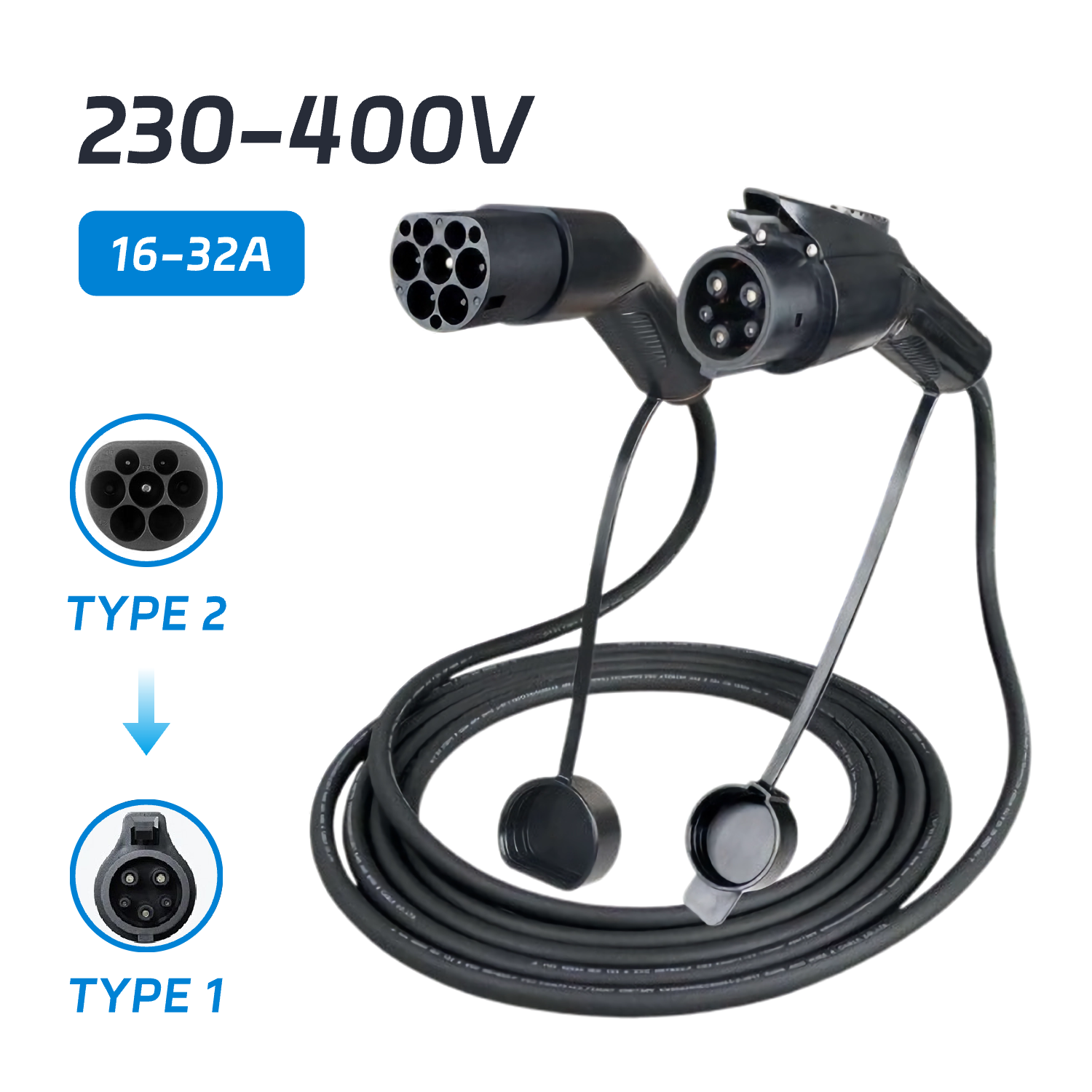

Ensure you’re never without a charge. This premium Type 2 to Type 1 charging cable is designed for electric vehicle owners who need a reliable way to connect their SAE J1772 (Type 1) vehicle to the increasingly common Type 2 public charging infrastructure.
Crafted from top-quality materials and built to the latest international standards, this cable offers a safe and dependable charging solution every time.
A Type 2 to Type 1 cable is an essential adapter for electric vehicle owners. It allows you to charge a car with a Type 1 (SAE J1772) port—common in North America—using a Type 2 charging station, which is the standard across Europe.
Simply put, it acts as a bridge, providing compatibility between different regional charging systems.
The process is simple:
Connect to the Station: Plug the male Type 2 connector into the public or home charging station.
Connect to Your Car: Attach the Type 1 (J1772) connector to your vehicle’s inlet.
Once connected, the cable facilitates a secure “handshake” between the charger and your car. This communication ensures the station delivers the correct amount of power safely and automatically stops charging once your battery is full or if any issues are detected.
Product Model | TPSON Type 2 to Type 1 Charging Cable | |
Specifications | Input Voltage / Output Voltage | AC 230V/400V |
Output Current | 16A 1 phase | |
Contact Pin | Copper alloy, silver plated | |
Vibration Resistance | Meet JDQ53.3 requirements | |
Performance and Safety | Ingress Protection | IP65 |
Electrical Protection | Under Voltage Protection / Over Load Protection / Short Circuit Protection / Earth Leakage Protection / Over-temp Protection /Lightning Protection | |
Environment Temperature | -25°C~55°C | |
Certifications | CE / RoHS/UKCA/FCC/TUV | |
Service Life | >10000 times | |
Physical Specifications | Length | 5M (Standard) |
Color | Black (Standard) | |
Cable/Cord/Wire | Straight / Coiled | |
Plug Material | PC+PA66 | |
Dimensions(L/W/D) | TPE / TPU | |
Weight | 2.5kg~4kg | |
