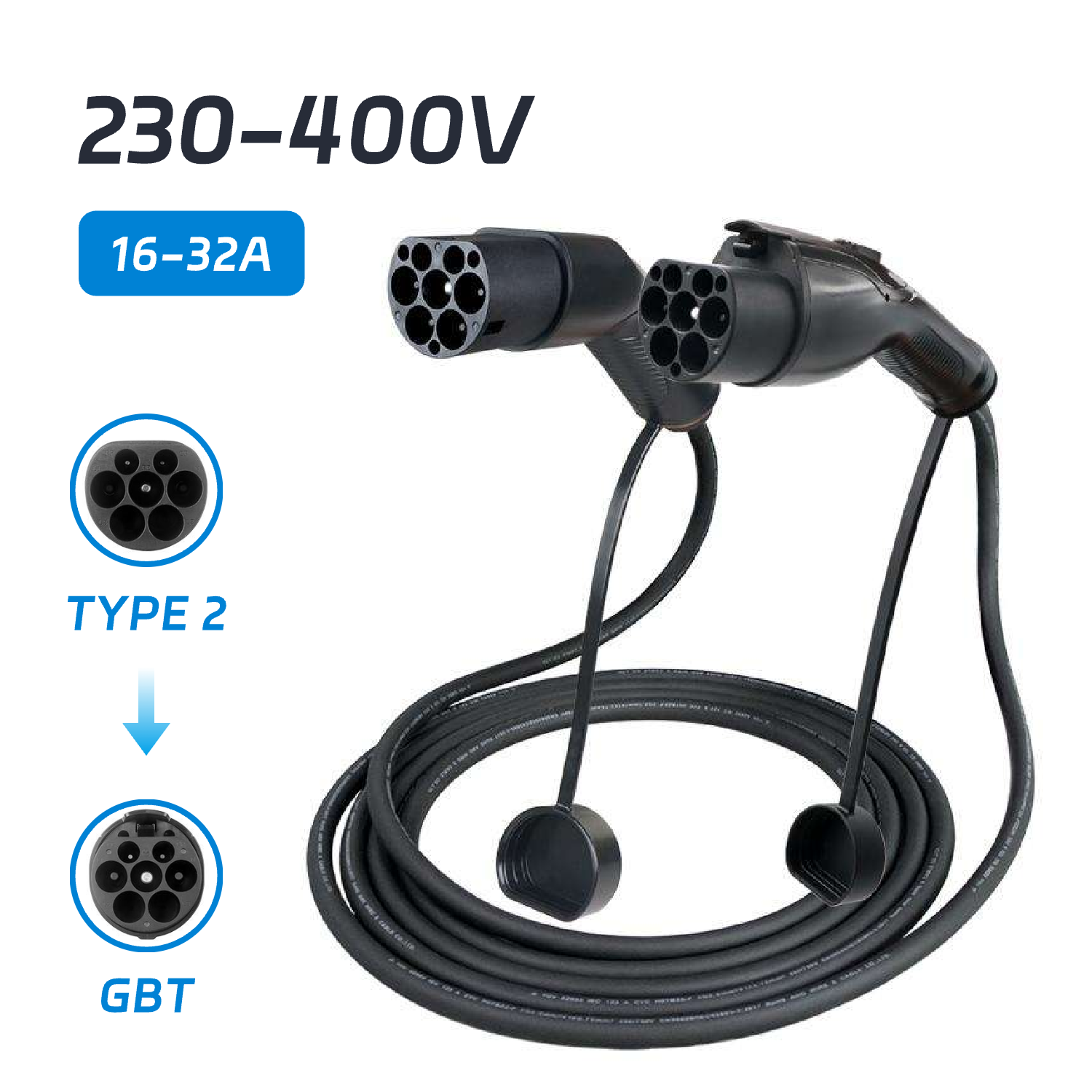

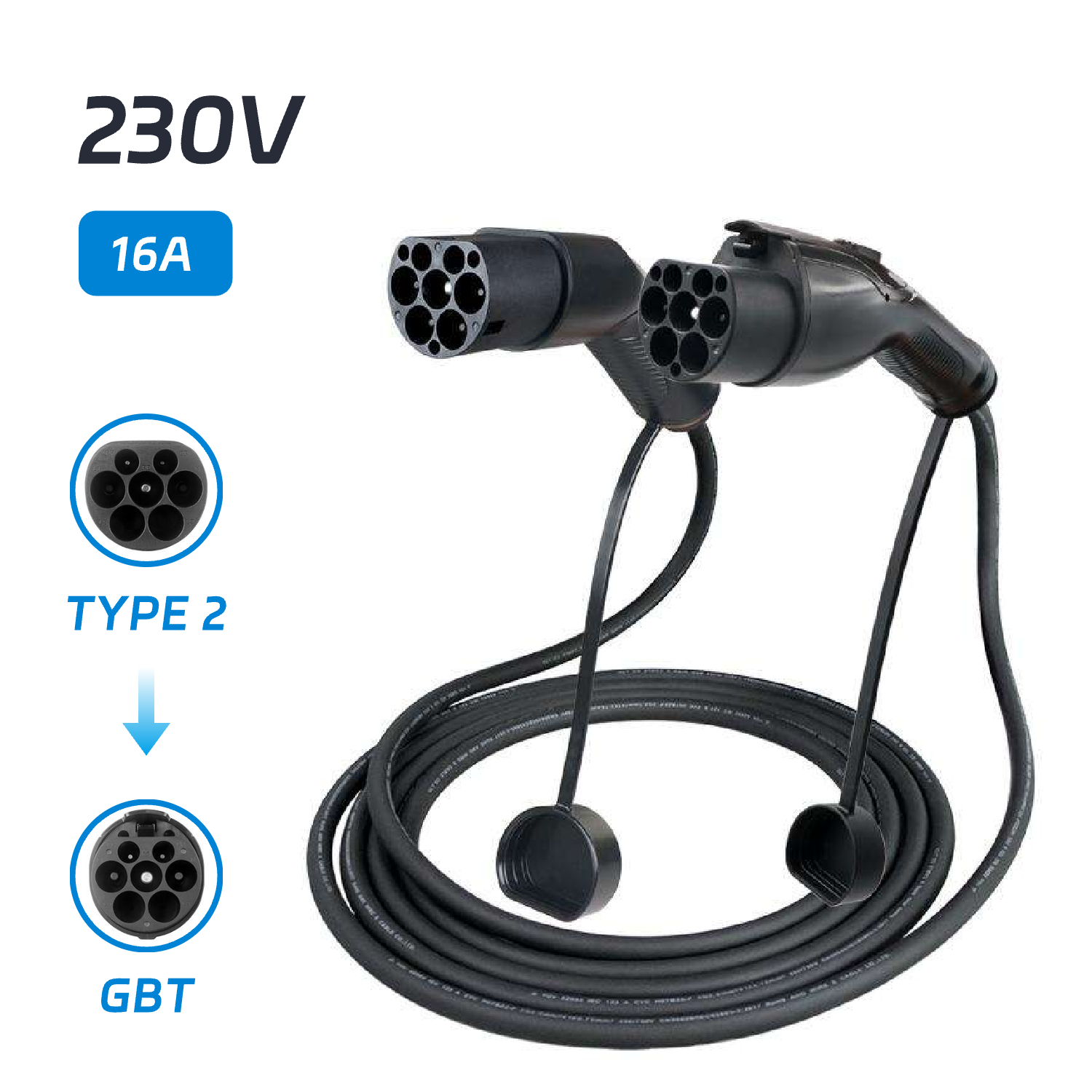

The TPSON Type 2 to GB/T charging cable provides the essential link between compatible Type 2 charging stations and electric vehicles with a GB/T charging port. Designed for durability and performance, it features a robust TPU jacket that resists oil, weathering, and cracking to ensure long-term reliability in all conditions.
This cable is engineered for superior charging efficiency with a 16A/32A output and silver-plated, self-cleaning terminals that guarantee a stable and consistent connection. Safety is assured with full CE and RoHS certification. To meet specific needs, the cable can be customized in various colors, lengths, and with your logo. TPSON delivers a tougher, more resilient charging solution built to outperform standard cables.
The Type 2 connector (commonly known as the Mennekes plug) is the standard for AC charging across Europe, while the GB/T interface is the national standard for electric vehicles in China. A Type 2 to GB/T charging cable is the essential link that bridges these two different systems, allowing EVs with a GB/T charging port to power up safely and efficiently at Type 2 charging stations.
The process is simple:
Connect to the Station: Plug the male Type 2 connector into the public or home charging station.
Connect to Your Car: Attach the female Type 2 connector to your vehicle’s inlet.
Once connected, this Mode 3 charging cable facilitates a secure “handshake” between the charger and your EV. This intelligent communication allows the system to utilize the cable’s full capabilities—supporting both single and three-phase power at up to 32A (230-400V). It ensures the station delivers the correct amount of power safely and automatically stops charging once your battery is full or if any issues are detected.
Product Model | TPSON Type 2 to GBT EV Charging Cable | |
Specifications | Input Voltage / Output Voltage | AC 230V/400V |
Output Current | 16A 1 phase / 32A 1 phase | |
16A 3 phase / 32A 3 phase | ||
Contact Pin | Copper alloy, silver plated | |
Vibration Resistance | Meet JDQ53.3 requirements | |
Performance and Safety | Ingress Protection | IP65 |

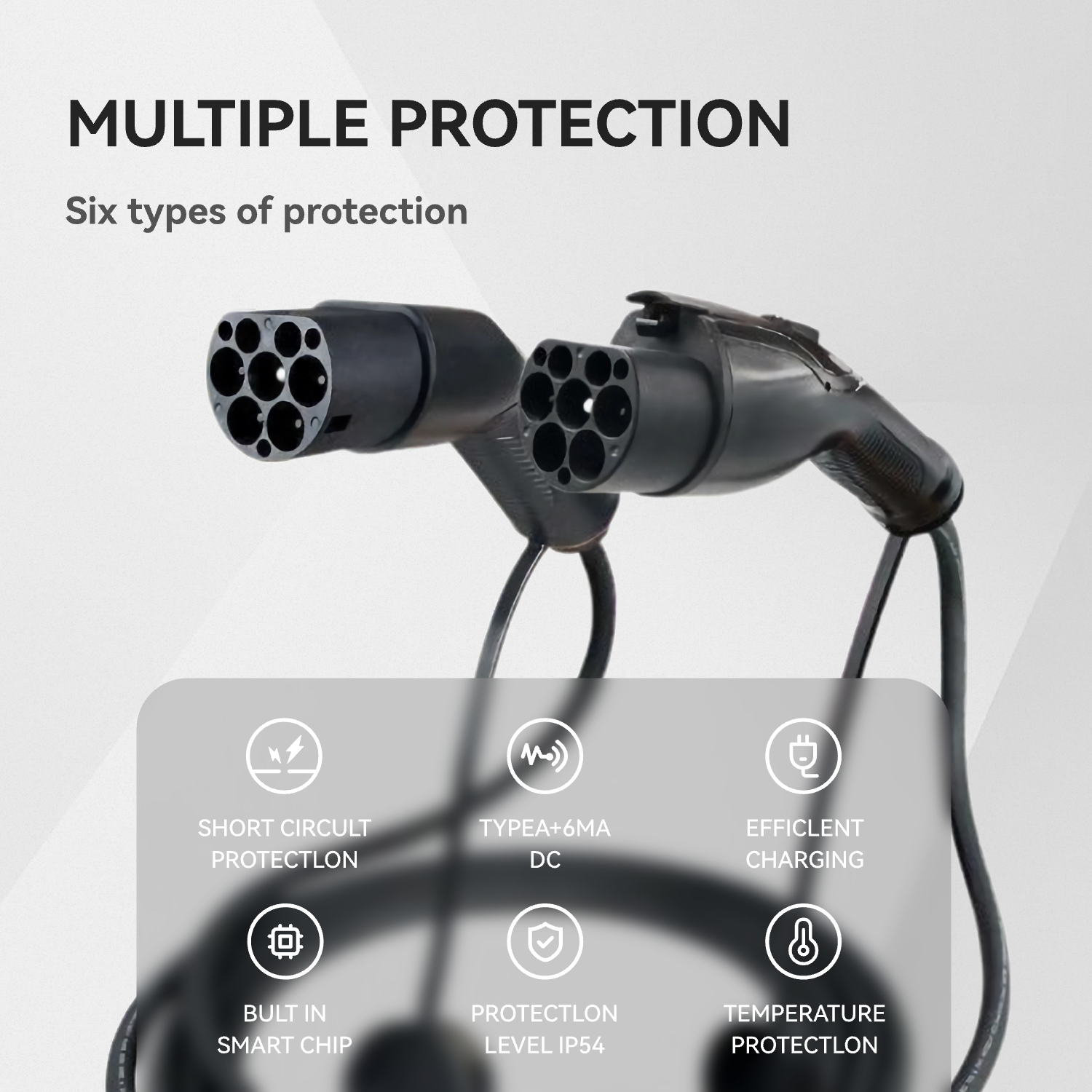

Electrical Protection | Under Voltage Protection / Over Load Protection / Short Circuit Protection / Earth Leakage Protection / Over-temp Protection /Lightning Protection | |
Environment Temperature | -25°C~55°C | |
Certifications | CE / RoHS/CB/UKCA/TUV | |
Service Life | >10000 times | |
Physical Specifications | Length | 5M (Standard) |
Color | Black (Standard) | |
Cable/Cord/Wire | Straight / Coiled | |
Plug Material | PC+PA66 | |
Dimensions(L/W/D) | TPE / TPU | |
Weight | 2.5kg~4kg | |
