TP-DY200 is TPSON’s next generation single-phase DIN RAIL smart meter, which integrates the new generation of IoT communication technology to intelligently protect the circuit. The product has built-in relays, a prepaid balance function, and a remote monitoring function.
Phase: Single-Phase
Rated Voltage: AC230V
Current Specifications: 63A
Communication Method: Tuya WiFi
The TP-DY200 is a highly integrated single-phase energy meter designed for precise measurement and intelligent energy management. It accurately measures AC active energy and key electrical parameters—including voltage, current, and power—providing essential data for monitoring consumption.
Its standout feature is the embedded Wi-Fi and Bluetooth connectivity, which allows for seamless data transmission to the cloud via any standard WiFi network. This enables you to easily track, analyze, and control your energy usage remotely from anywhere at any time, turning raw data into actionable insights.
Engineered for reliability and long-term use, the meter meets the Class 1 accuracy requirements of the IEC62053-21 standard and communicates via WiFi 802.11b/g/n protocols. It is built for stability, with a high overload capability and low power loss. The device is designed for simple installation on a standard 35mm DIN rail within indoor electrical cabinets.
The TP-DY200 operates reliably in a wide range of conditions, with an ambient temperature range of -20°C to 70°C and relative humidity up to 95%, making it a robust and durable solution for modern energy monitoring needs.
Product Model | TP-DY200 | |
Product Category | Energy Management | |
Electrical Specifications | Phase | Single Phase |
Rated Voltage | AC230V | |
Rated Frequency | 50Hz/60Hz | |
Current specifications | 63A | |
Power consumption | <2W | |
Performance and Safety | Ingress Protection | IP20 |
Environment Temperature | -20°C~70°C | |
Operation Humidity | <95% | |
Certifications | CE/RoHS | |
Functions | Communication method | Tuya WiFi |
Display Type | LCD Display | |
Actiye energy constant | 1000imp/kwh | |
Mechanical lifespan | 10000 times | |
Accuracy | Voltage,current, power, and active energy:Class 1 | |
Physical Specifications | Dimensions(L/W/D) | 100mm*75.1mm*76mm |

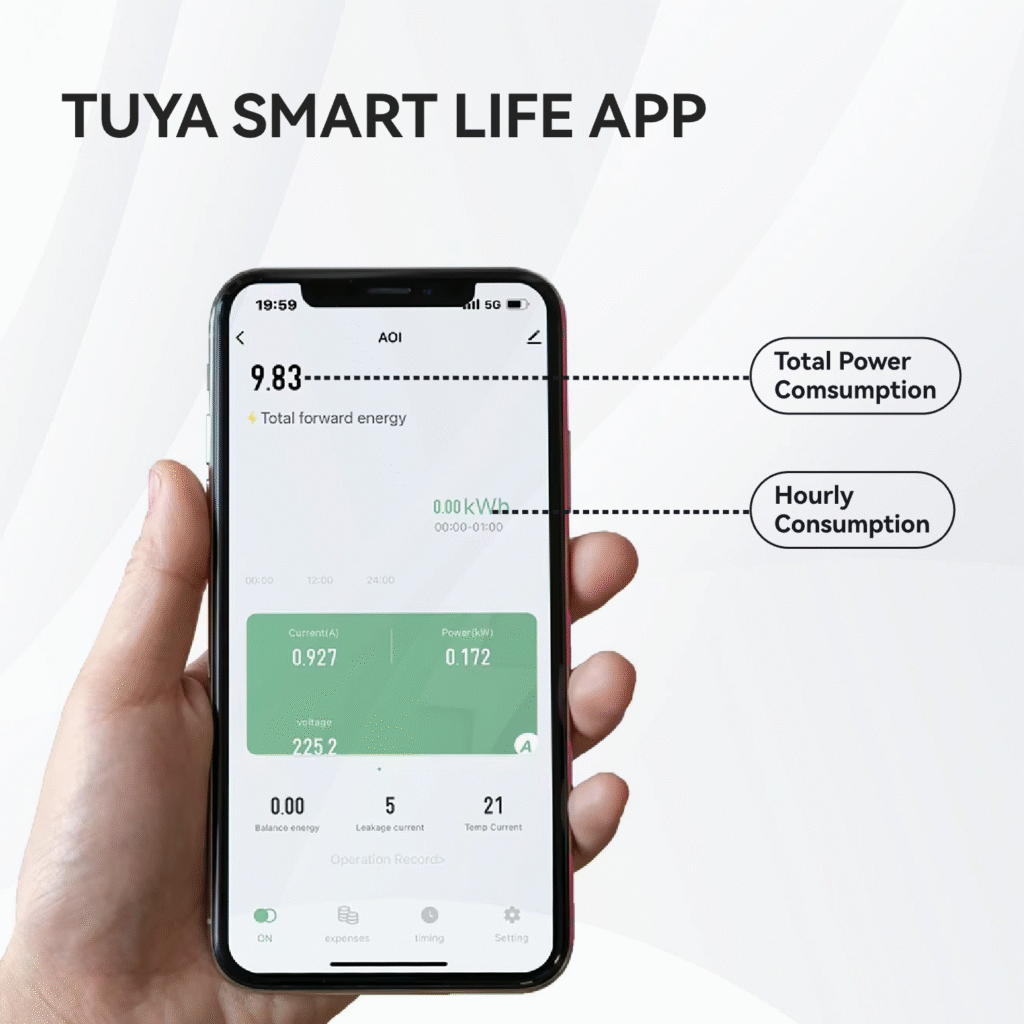

APP Support
Monitor all critical electrical parameters at a glance from your smartphone. The intuitive interface displays key metrics including Total Power Consumption, Voltage, Current, Active Energy, Reactive Power, and Power Factor, giving you complete visibility over your energy usage.
Remote Control
Take direct control of your energy consumption from anywhere. This function allows you to remotely turn the connected circuit ON or OFF and set custom schedules, enabling automated energy management and enhanced savings.

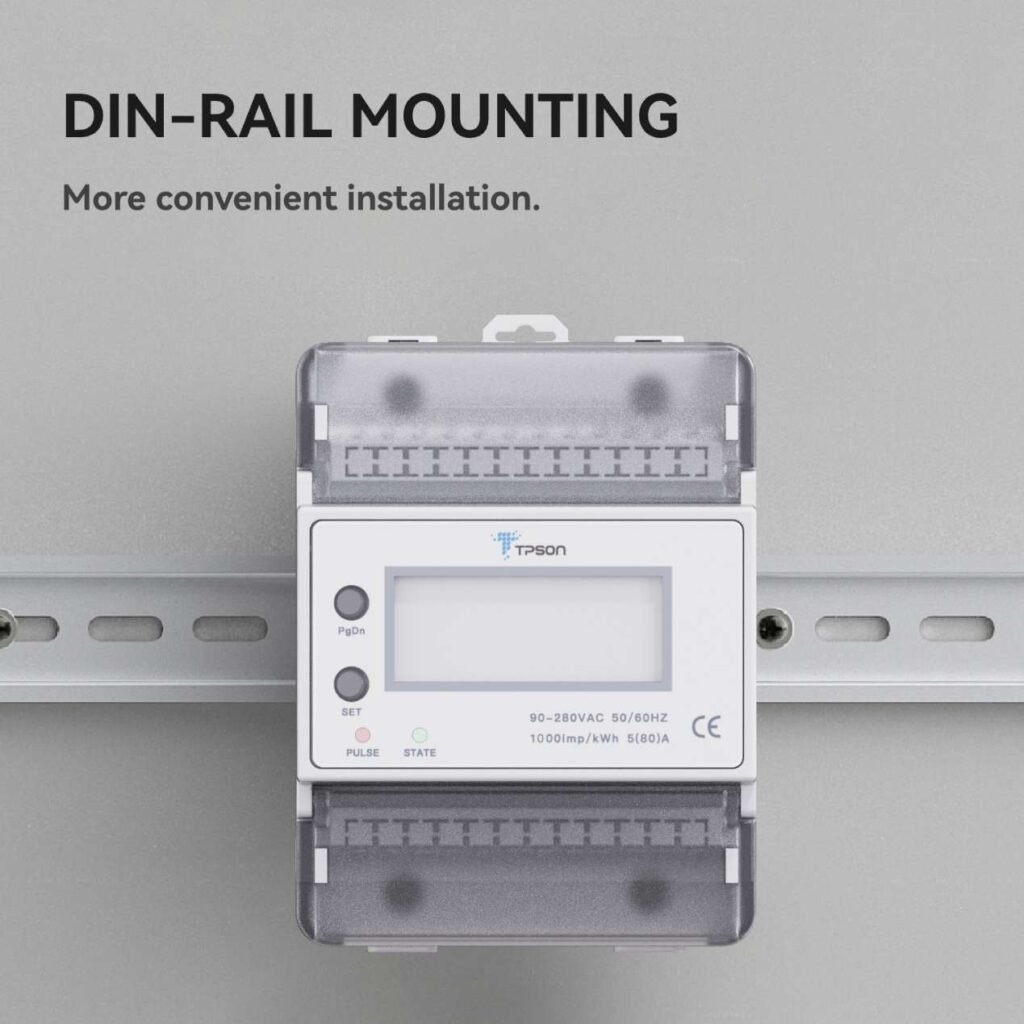

DIN-Rall Mounting
Designed for quick and convenient integration into any electrical system. The meter features standard 35mm DIN-rail mounting, allowing it to fit neatly and securely inside a distribution box for a professional and space-efficient installation.

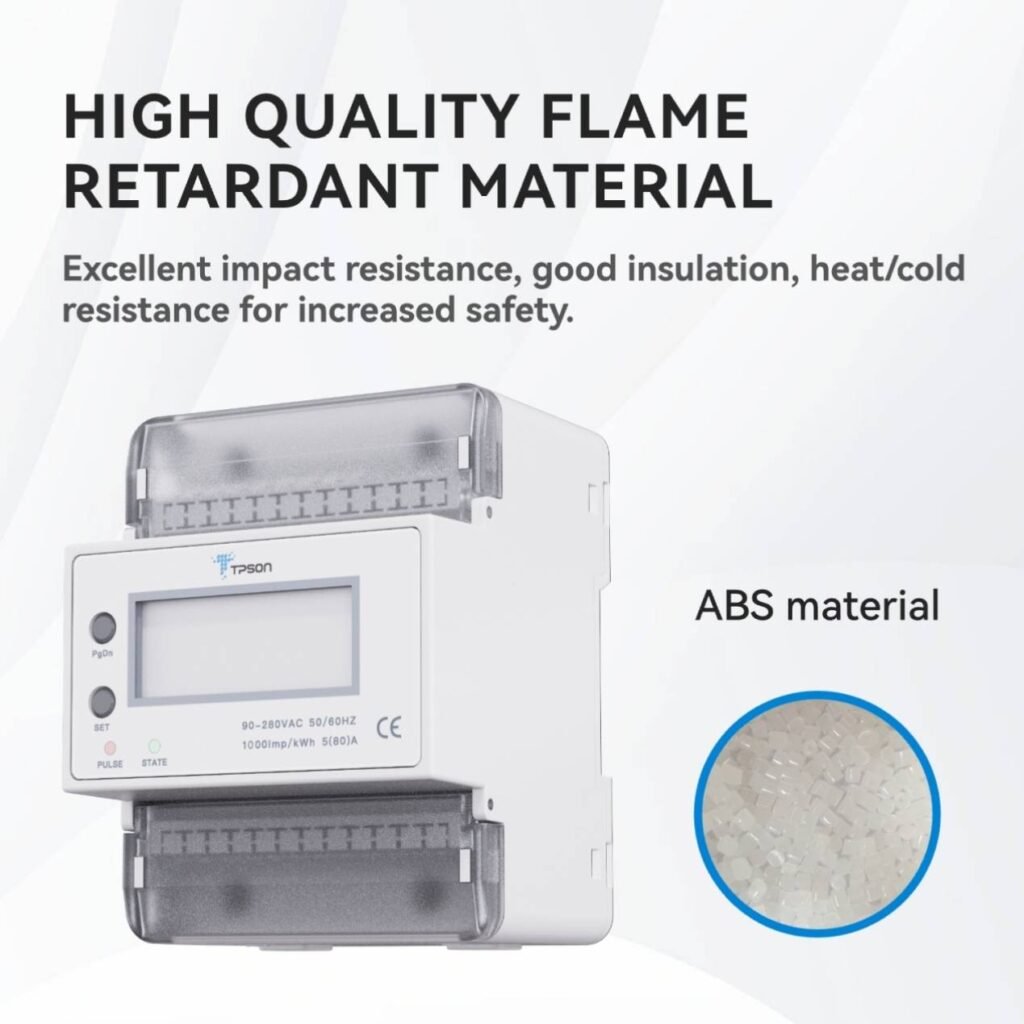

High Quality Flame Retardant Material
Built with safety and longevity as a priority. The meter’s enclosure is constructed from high-quality, flame-retardant ABS material, providing excellent impact resistance, insulation, and reliability across a wide range of temperatures for safer operation in demanding environments.

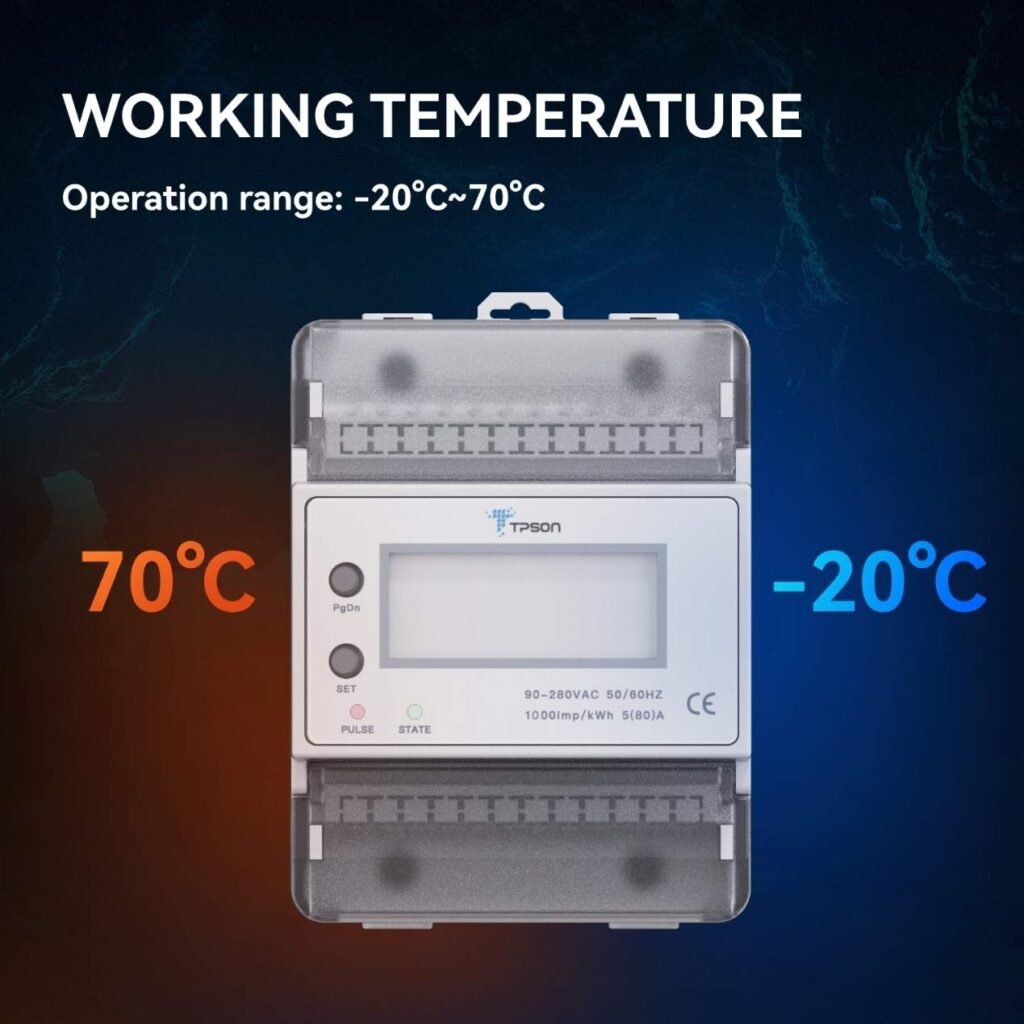

Working Temperature
The TP-DY200 operates reliably in a wide range of conditions, with an ambient temperature range of -20°C to 70°C and relative humidity up to 95%, making it a robust and durable solution for modern energy monitoring needs.
Wide Range of Applications:
Perfect choice for dividing electrical devices into several separate electrical installations, used for homes,schools,shopping malls,factories and more.
